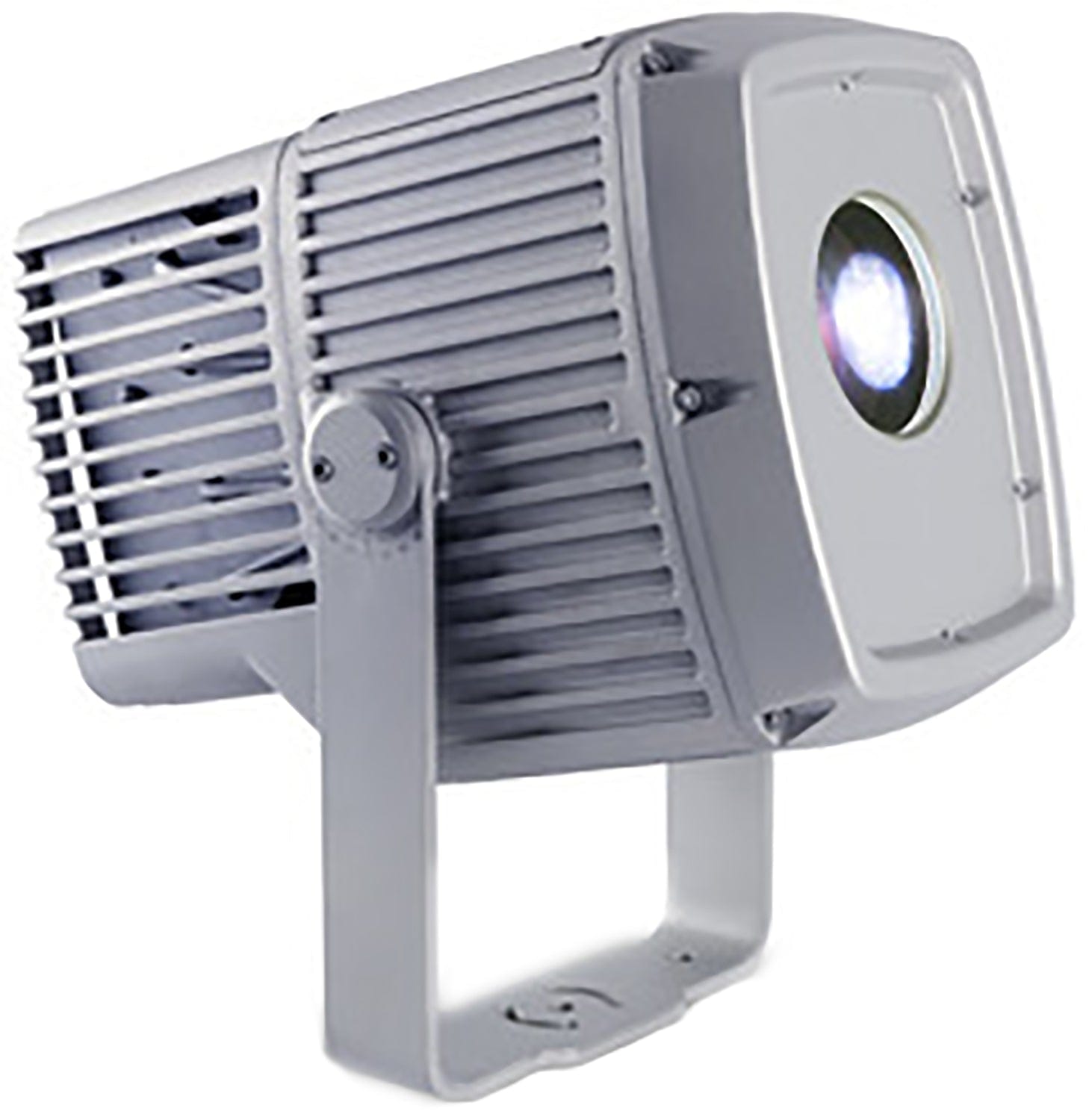

Martin 500 Narrow Image Outdoor Projection Projector - EU Version, White
Transform your outdoor lighting designs with the Martin Exterior Projection 500! Create eye-catching displays with textures, patterns, and graphics. Ideal for businesses and event planners looking to make a statement.
Featuring advanced LED technology, this projector offers:
- Outstanding energy efficiency
- Compact size for easy installation
- Unlimited creative possibilities
Key Features:
- Up to 6100 lumens output with 4 beam angles
- Powerful projection for close and long ranges
- High-contrast, flat-field image projection
Specifications:
- Physical:
- Length: 415 mm (16.4 in.)
- Width: 293 mm (11.6 in.)
- Height: 444 mm (17.5 in.)
- Weight: 17.5 kg (38.6 lbs.)
- Dynamic Effects:
- 8 interchangeable colors + open color wheel
- 6 rotating gobos + open, indexing, variable rotation gobo wheel
- Variable speed linear animation effect
- Prism wheel with 2 interchangeable prisms, rotation and indexing
- Motorized variable frost (wash effect)
- Electronic, constantly variable 0-100% dimming, 16-bit control
- Strobe and pulse effects, instant open and blackout shutter
- Motorized, variable 3 m (9.8 ft.) to infinity focus
- Control and Programming:
- Up to 20 scenes with global fade/hold times
- DMX, RDM, standalone control options
- Onboard control panel with OLED display
- 8-bit control for color/gobo selection, prism, frost, animation
- 16-bit control for gobo indexing and rotation, focus and intensity
- 13 DMX channels
- USITT DMX512-A DMX compliance
- ANSI/ESTA E1.20 RDM compliance
- Optics:
- 230 W white light LED engine
- CRI (Color Rendering Index): 72
- Color temperature: 8300 K
- 20,000 hours LED lifetime (to >70% luminous output)*
- Prolight Opto LED manufacturer
- Tight color and flux binning
- Photometric Data:
- Cut-off angle: 12°
- Total output: 5000 lumens
- Center peak: 203,000 cd
- Construction:
- Cast aluminum housing
- Hard anodized, metallic grey lacquered finish
- 5 mm (0.2 in.) anti-reflection coated tempered glass front
- IP66 ingress protection
- IK08 impact resistance (with control panel display cover plate)
- C5-M corrosion resistance (marine, ISO 12944)
- 1.0g, Sinusoidal (IEC 60068-2-6) and 0,7g RMS Random (IEC 60068-2-64) vibration resistance
- 0.15 m2 EPA (Effective Projected Area)
- RoHS compliant

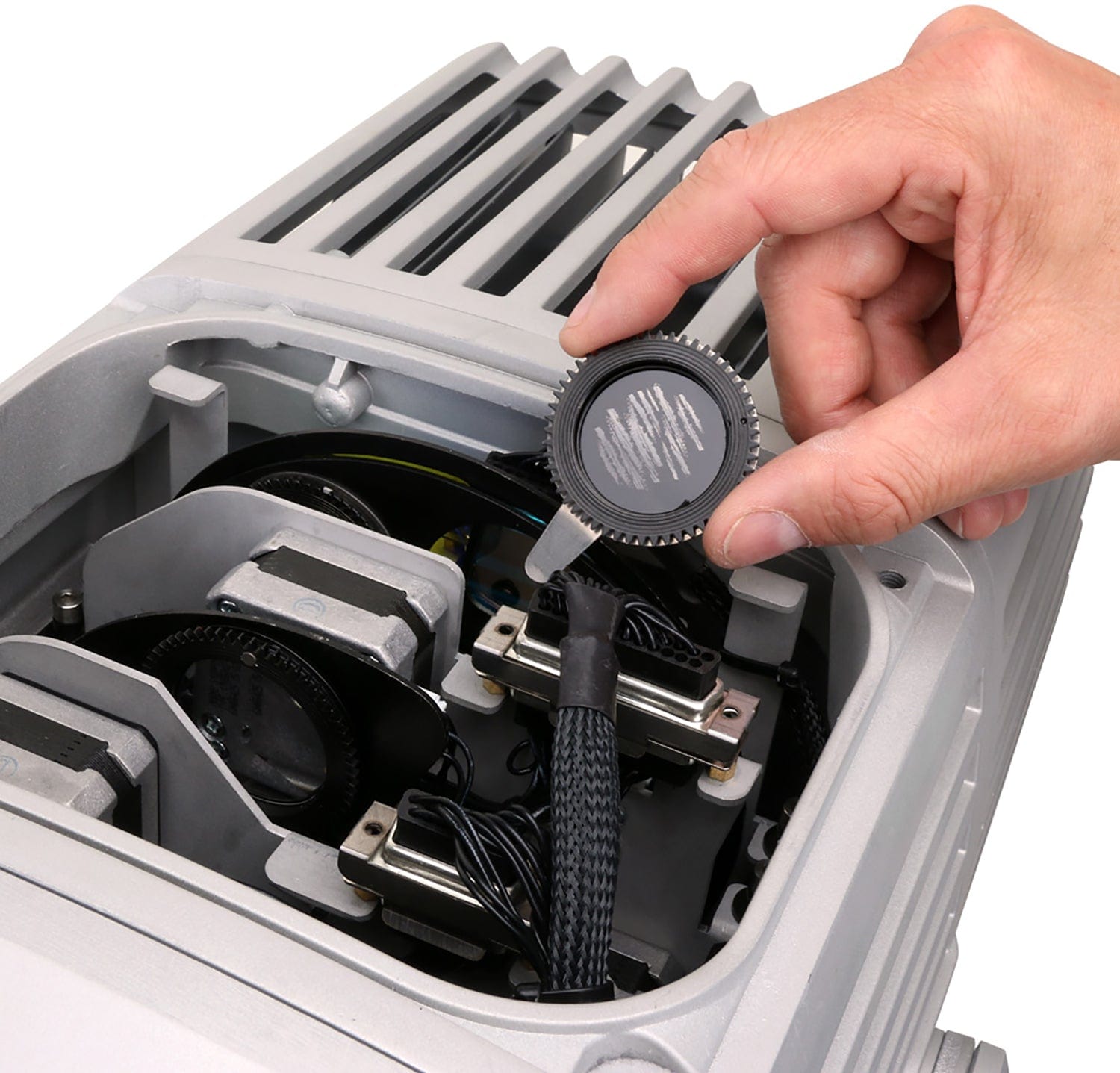

- Gobos:
- Borosilicate glass or aluminum 1060 gobos
- 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.) gobo diameter
- 23 mm (0.91 in.) maximum image diameter
- 1.1 mm ±0.1 mm (0.045 ±0.004 in.) minimum glass gobo thickness
- 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.) maximum glass gobo thickness
- 0.5 mm ± 0.02 mm (0.020 in. ± 001 in.) aluminum gobo thickness
- HT paint
- Installation:
- Adjustable yoke mounting
- Suitable for wet locations (do not immerse)
- Any orientation (sides vertical)
- Minimum 0.5 m (20 in.) distance to illuminated surfaces

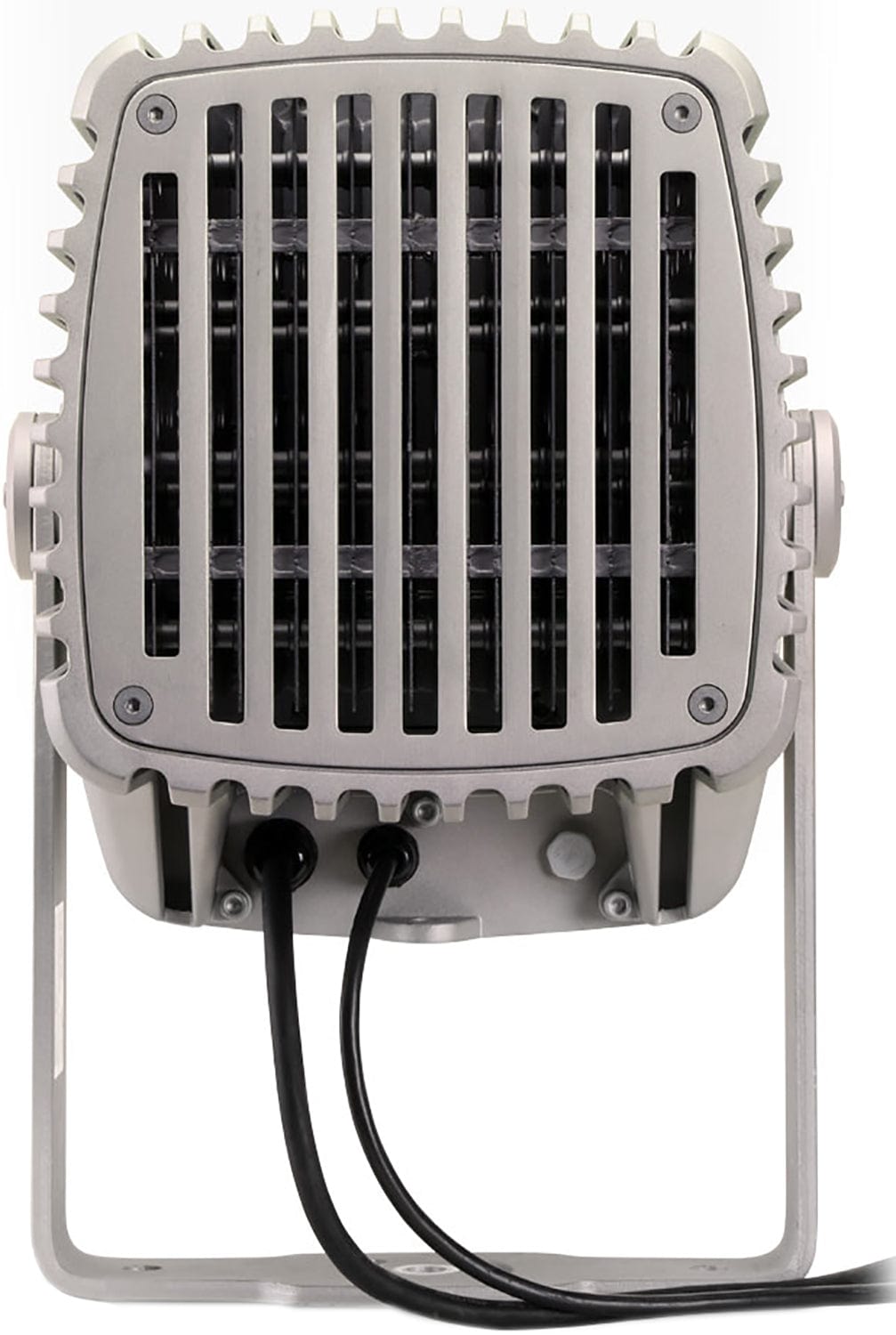

- Connections:
- IP68 cable gland power cable entry
- 1.8 m (5.9 ft.) cable tail with bare ends power connection
- IP68 cable gland data cable entry
- 1.8 m (5.9 ft.) combined input + output cable tail with bare ends data connection
- Electrical:
- 100-240/277 V nominal, 50/60 Hz AC power
- Auto-ranging electronic switch-mode power supply
- 8.4 A typical half-cycle RMS inrush current
- 32 W, 0.3 A idle power (zero intensity, no effects)
- 4 KV surge protection
- Typical Power and Current:
- 110 V, 60 Hz: 320 W, 2.9 A, PF 0.977
- 230 V, 50 Hz: 310 W, 1.4 A, PF 0.971
- 277 V, 60 Hz: 305 W, 1.2 A, PF 0.950
- Thermal:
- Convection and internal forced air cooling
- 1100 BTU/hr. total heat dissipation
- 85° C (185° F) maximum surface temperature
- 45° C (113° F) maximum ambient temperature
- -30° C (-22° F) minimum ambient temperature
The Martin 500 Narrow Image Outdoor Projection Projector is perfect for businesses and event planners. Use it to create stunning outdoor lighting displays with textures, patterns, and graphics. It features advanced LED technology for energy efficiency, a compact size, and endless creative possibilities. - **Technical Specifications:** - **Dimensions:** 415 mm (L) x 293 mm (W) x 444 mm (H) - **Weight:** 17.5 kg - **Output:** Up to 6100 lumens with 4 beam angles - **Dynamic Effects:** 8 interchangeable colors, 6 rotating gobos, variable speed animation, prisms, frost, dimming, shutter, and focus - **Control Options:** DMX, RDM, standalone - **Optics:** 230 W white light LED engine, CRI 72, 8300 K color temperature, 20,000 hour LED lifetime - **Construction:** Cast aluminum housing, IP66 ingress protection, IK08 impact resistance, C5-M corrosion resistance - **Installation:** Adjustable yoke mounting, suitable for wet locations, minimum 0.5 m distance to illuminated surfaces - **Connections:** IP68 cable glands for power and data, 1.8 m cable tails with bare ends - **Electrical:** 100-240/277 V nominal, 50/60 Hz AC power, auto-ranging switch-mode power supply, 4 KV surge protection - **Thermal:** Convection and internal forced air cooling, 1100 BTU/hr total heat dissipation, 85° C maximum surface temperature, 45° C maximum ambient temperature, -30° C minimum ambient temperature
