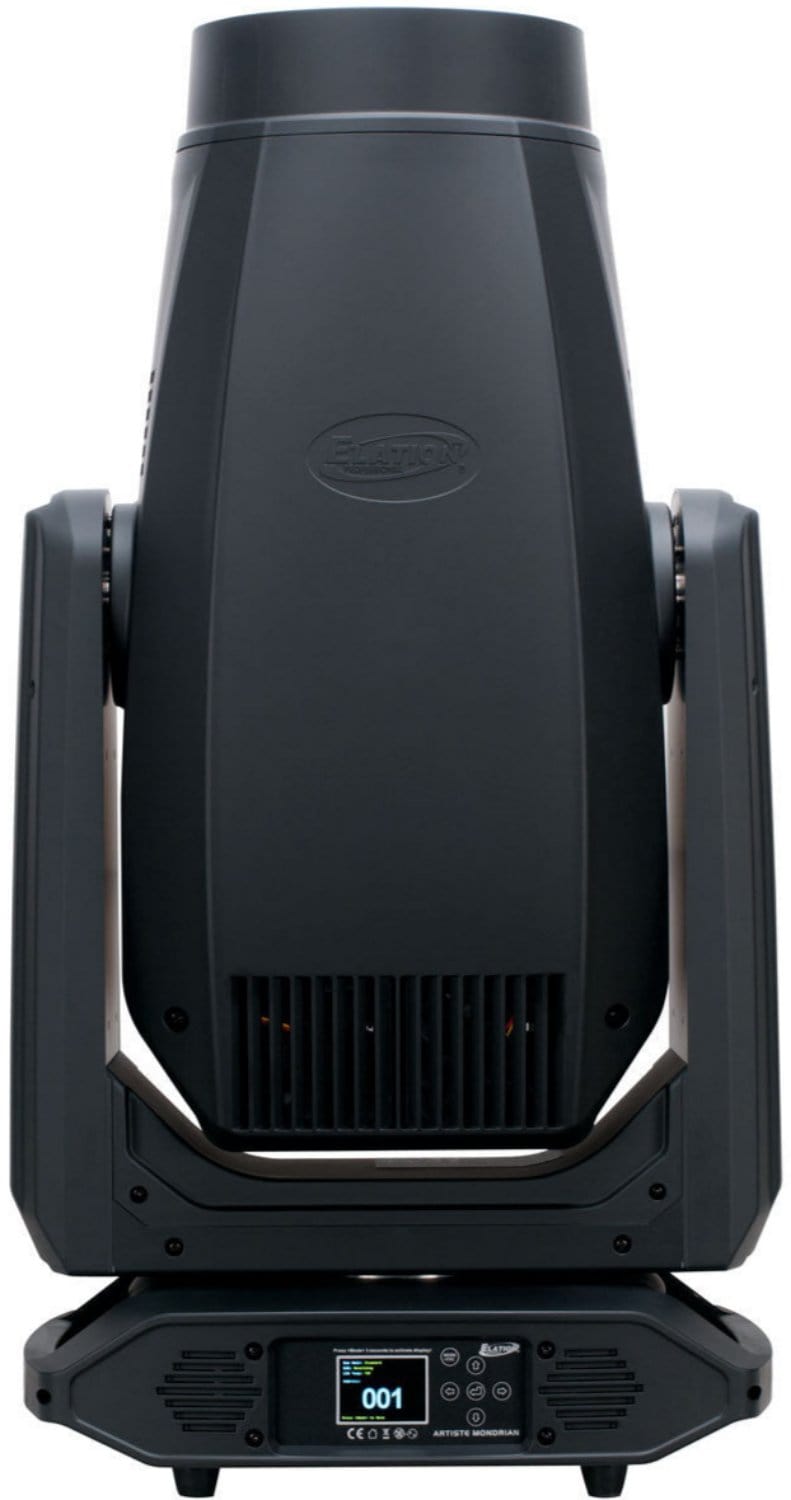

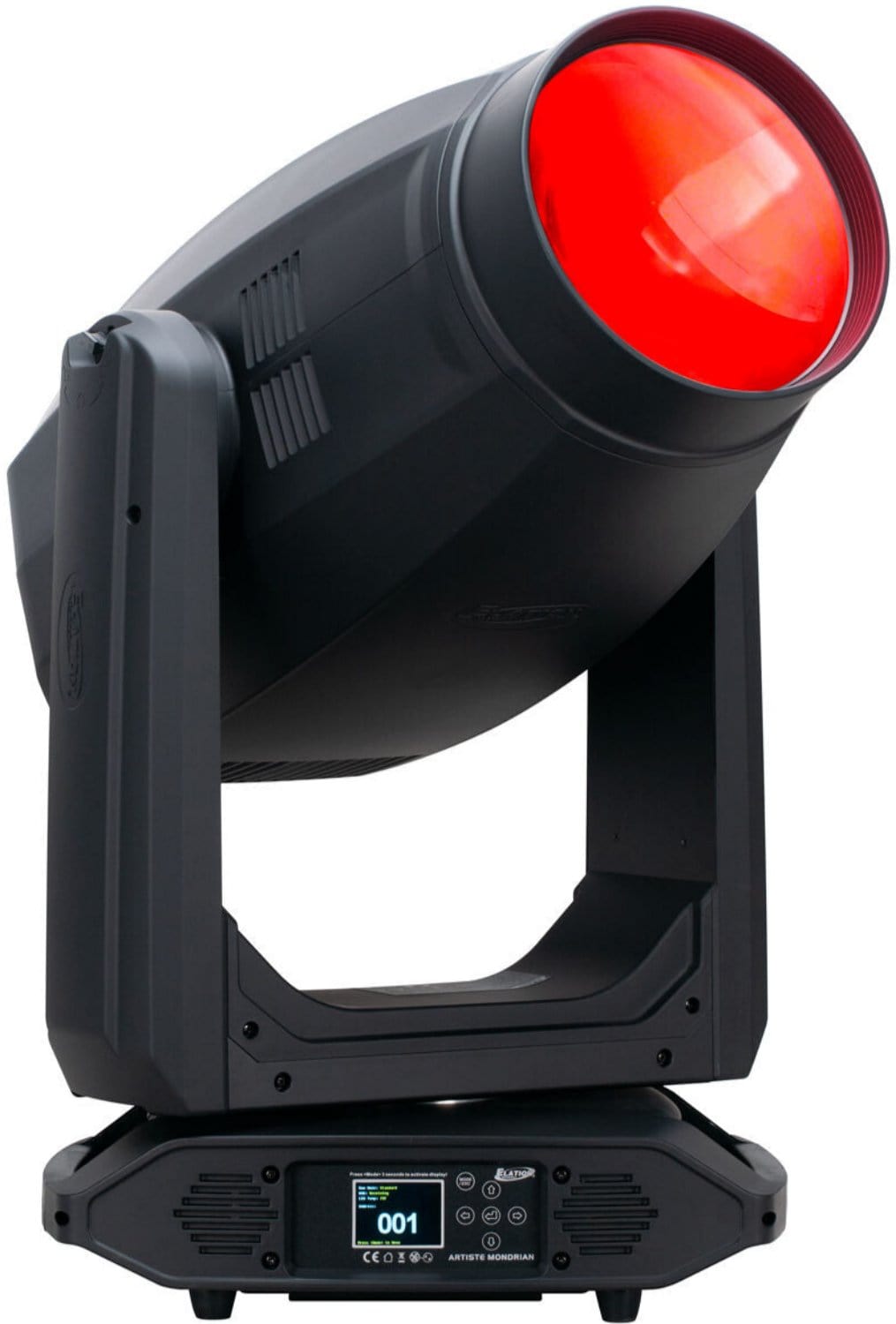

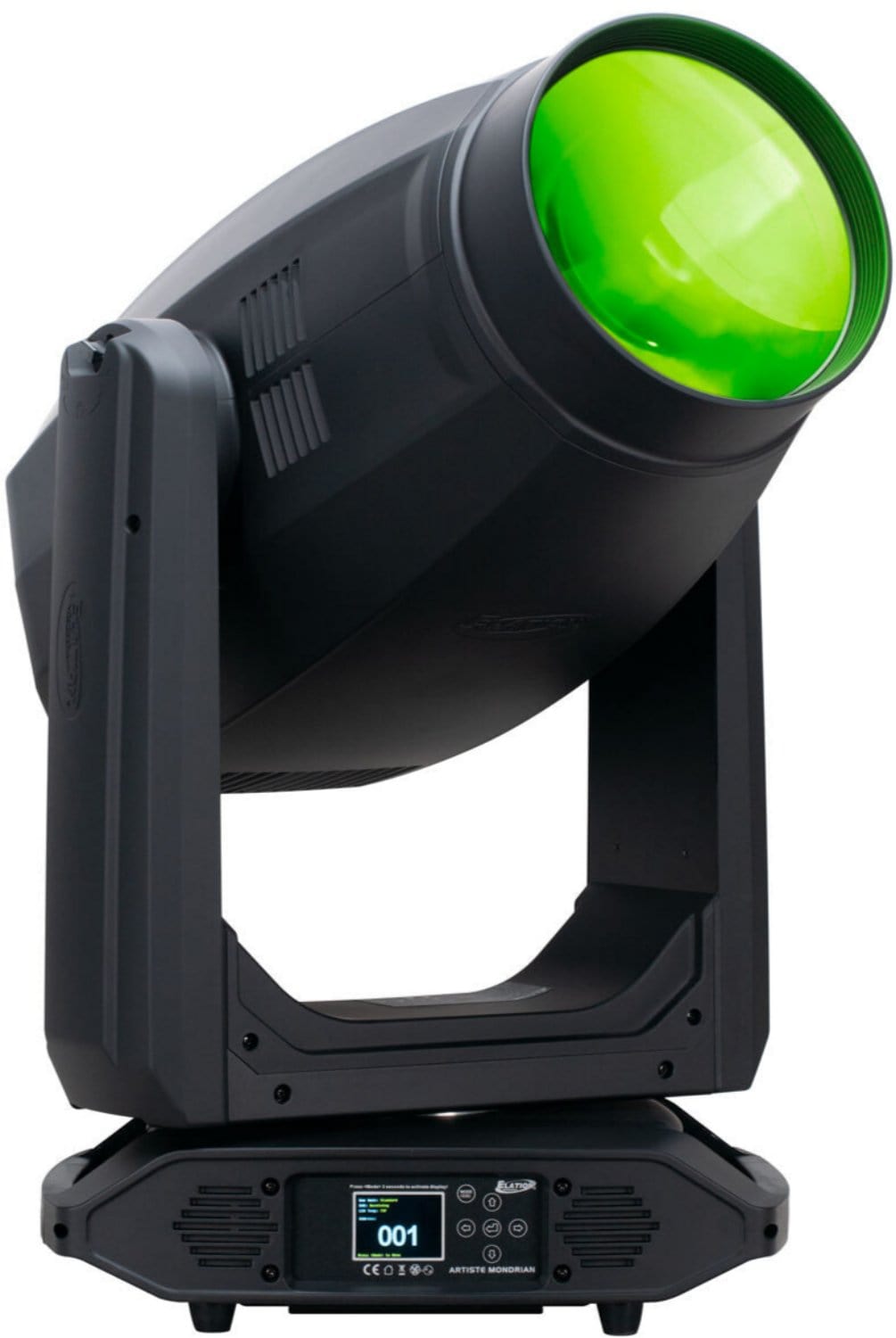

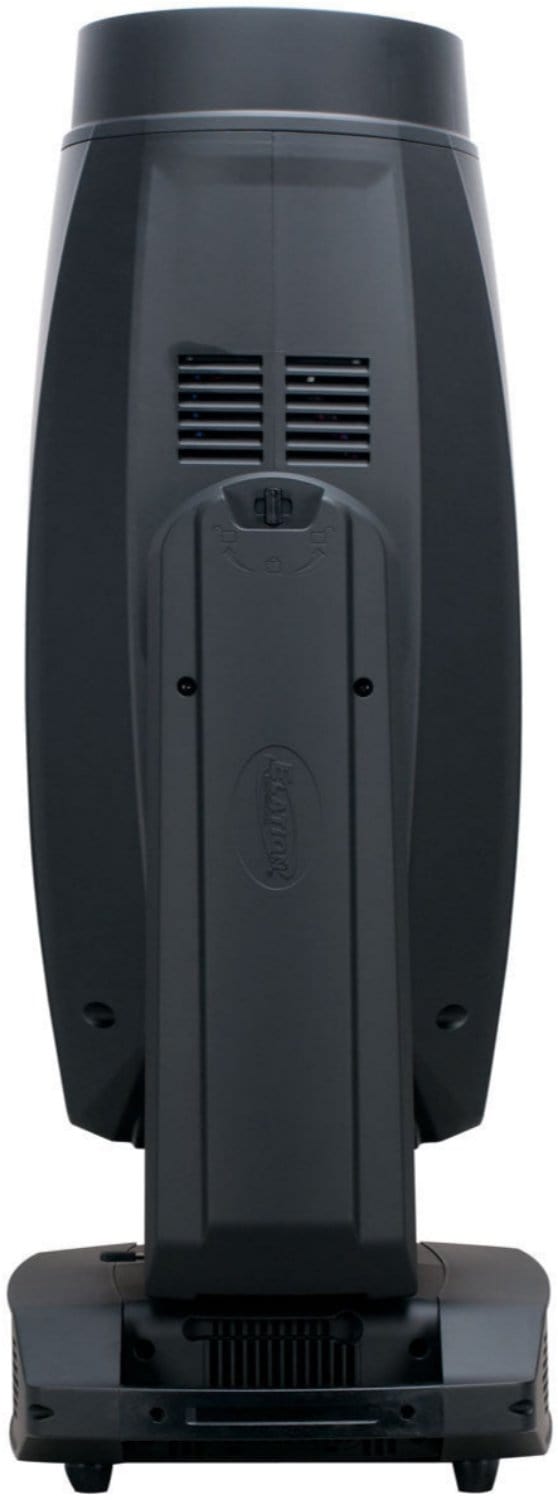

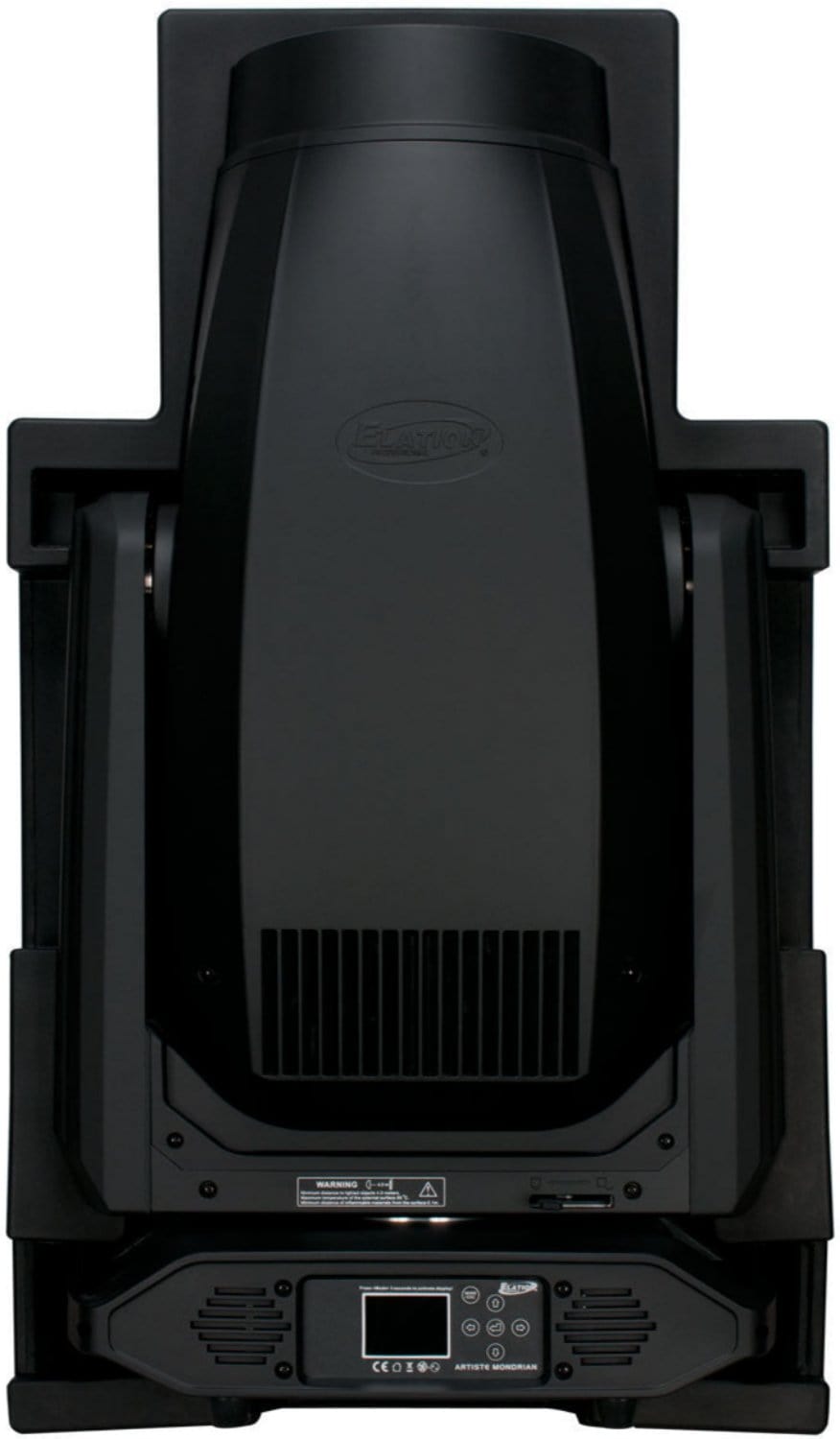

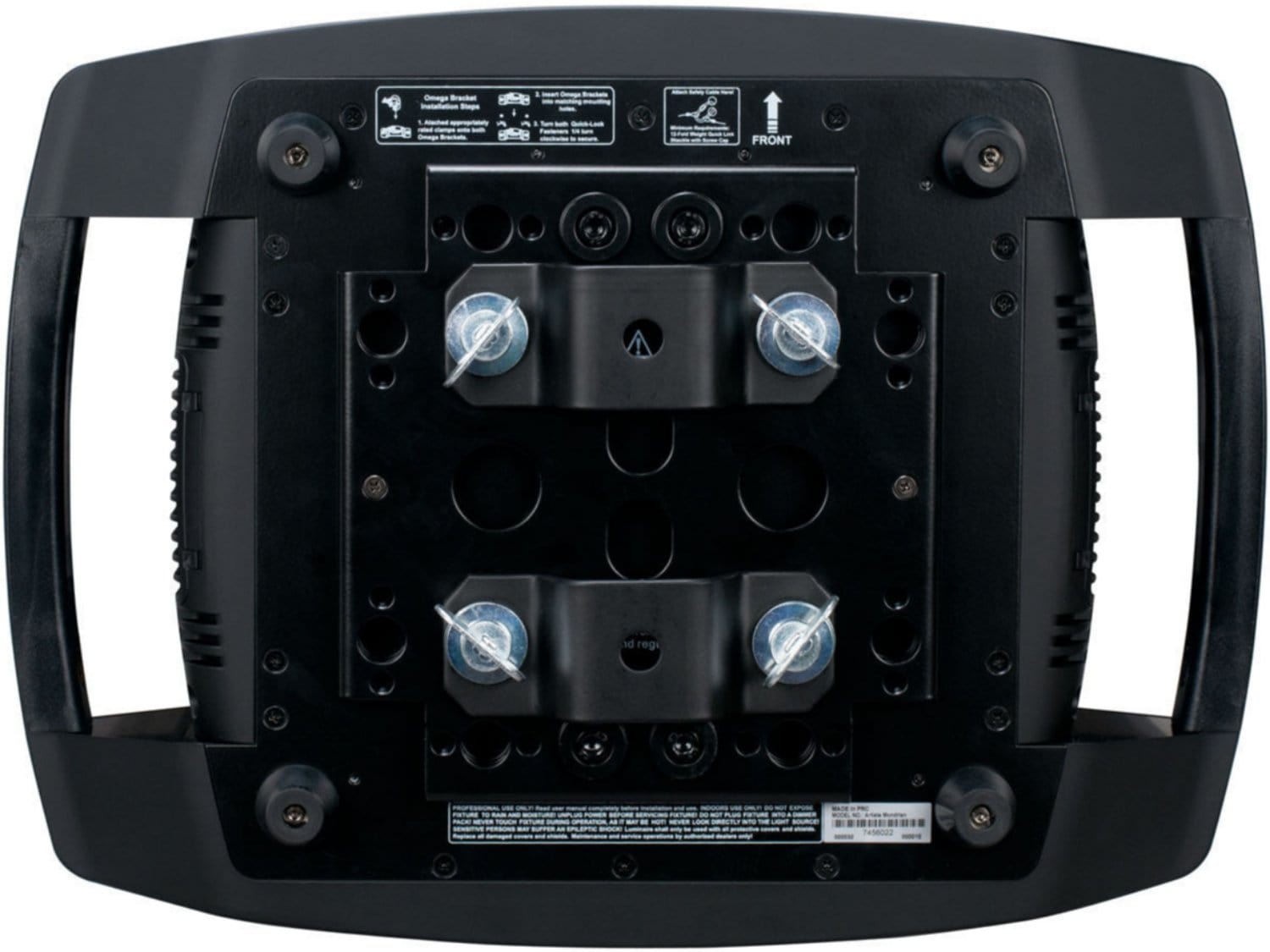

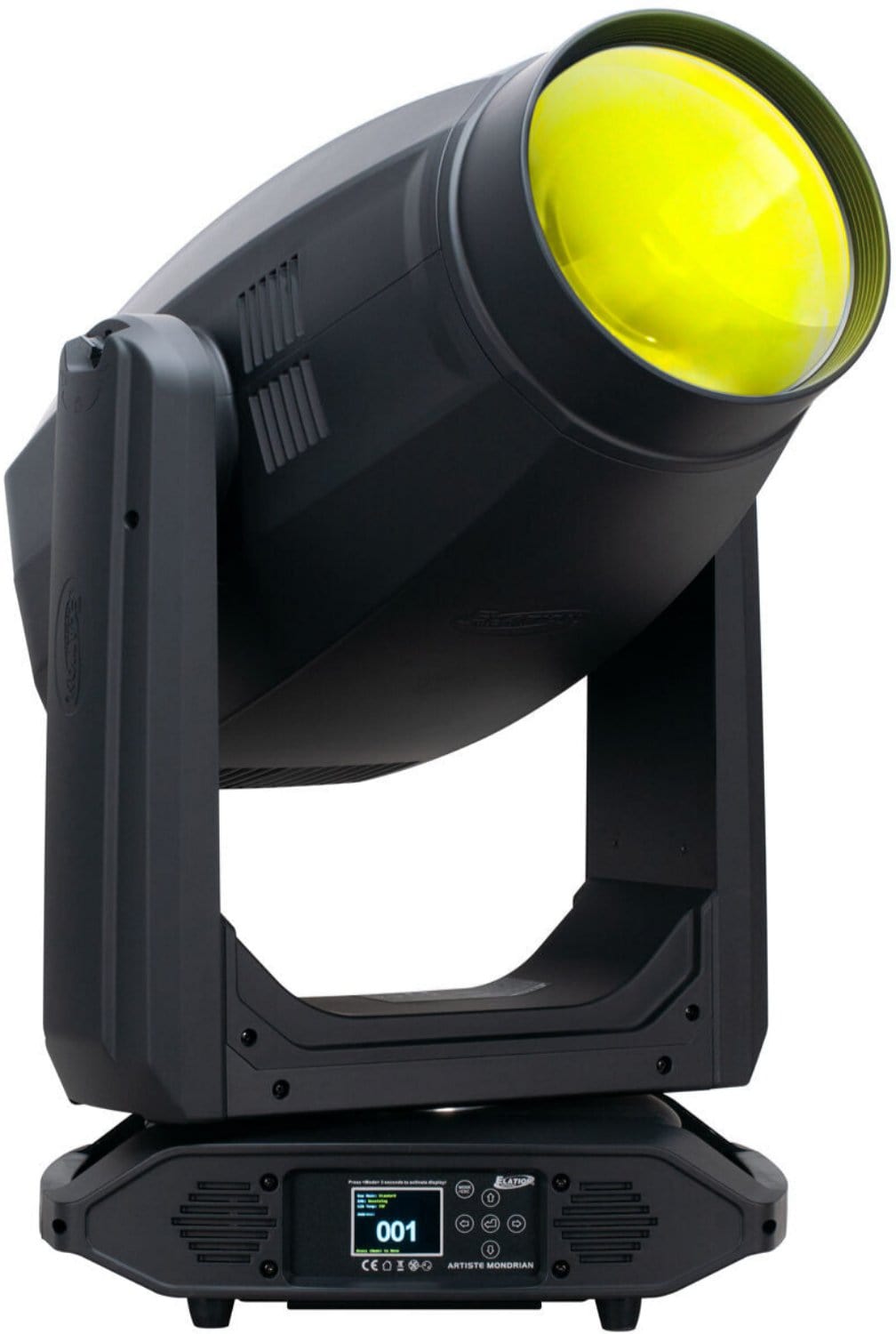

Elation Artiste Mondrian 950W LED FX Light
The Artiste Mondrian is an amazing LED fixture that's perfect for stage shows, arena tours, and large - scale events. It offers high center intensity, narrow - beam angles, and a wide color - mixing gamut.
• High - power 950W 6,500K LED engine provides up to 51,000 lumens, ideal for applications needing superior output. • Integrates new SpectraColor system for rich, saturated colors and previously impossible color combinations. • Full - blackout framing array with unique shape rotation and morphing capabilities for creative effects.
With a comprehensive FX package including 12 rotating gobos, an animation wheel, dual prisms, dual frost, and a high - speed iris, along with a zoom range of 3° to 45° and a large 226mm front lens, it's great for long - distance projection.
Features:
- High Efficiency 950W 6,500K White Peak Field LED Engine
- Up to 51,000 Total Lumen Fixture Output
- SpectraColor CMYRGB Array and Variable Linear CTO
Specifications:
- Photometric Data:
- Total Lumen Fixture Output: 51,000
- CRI: 72+ (84+ with HCRI Filter)
- Zoom Range: 3° - 45°
- Beam Angle: 2.8° - 34.9°
- Field Angle: 4° - 46.1°
- Effects:
- Motorized Zoom (226mm / 8 3/4' front lens)
- 4 Rotating Full Blackout Framing Blades
- 360° Continuous Framing Index and Rotation
- Full 360° Bi - Directional Animation Wheel
- 2 Rotating Prisms
- 2 Variable Frost Filters (Light and Wash)
- Internal Color, Framing, Prism, and Frost Macros
- Motorized Iris with Variable Pulse Effects
- Variable 16 - bit Dimming Curve Modes
- High - Speed Electronic Shutter and Strobe
- DMX Controllable LED Refresh Rate
- Pan Angle: 540°/630°
- Tilt Angle: 250°
- Color:
- SpectraColor CMY + RGB Color Mixing Array
- 6 Dichroic Colors including High CRI Filter and UV
- Linear CTO Color Correction
- Gobos:
- 2 Gobo Wheels
- 12 Rotating / Indexing Interchangeable Glass Gobos
- Control/Connections:
- 2 DMX Channel Modes (42/68)
- 16 - bit Pan, Tilt, and Dimming Control
- Motorized Focus and Auto - Focus Presets
- DMX, RDM, Art - NET, sACN Protocol Support
- 6 - Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- Hibernation Mode (Power Save)

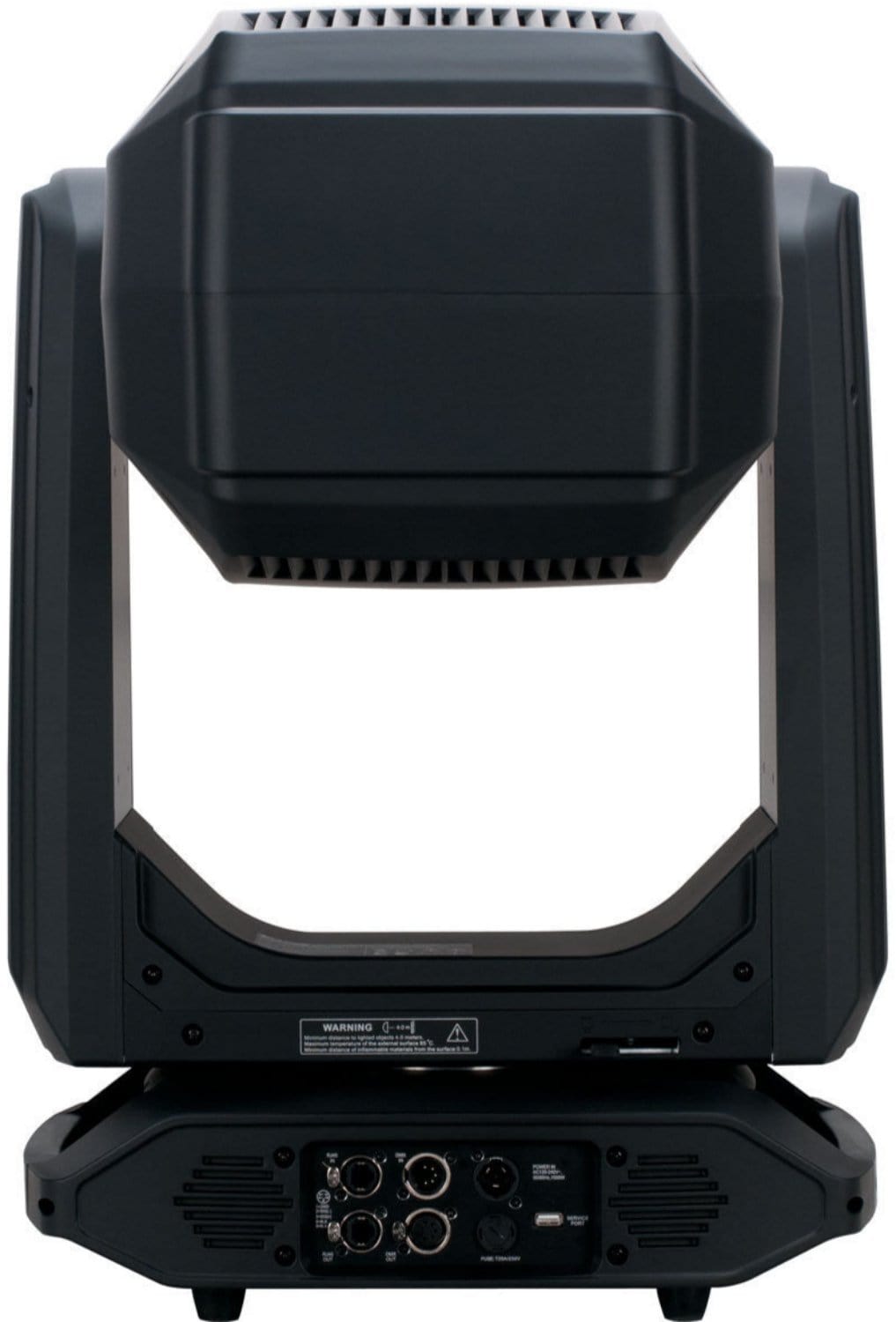

- Locking 5pin XLR DMX, RJ45 Ethernet, and Power
- USB Connection (Firmware Updates)
- Wired Digital Communication Network
- Size/Weight:
- Length: 18.55 in. (472mm)
- Width: 26.5 in. (673mm)
- Height: 34.2 in. (870mm)
- Center - to - Center: 30.9 in. (784.3mm)
- Weight: 104.7 lbs. (47.5kg)
- Electrical/Thermal:
- AC 120 - 240V 50/60Hz
- Max Power Consumption: 1,500W
- BTU/hr (+/- 10%): 5115
This Elation Artiste Mondrian 950W LED FX Light is great for stage shows, arena tours, and large - scale events. It has a length of 18.55 in. (472mm), width of 26.5 in. (673mm), height of 34.2 in. (870mm), center - to - center of 30.9 in. (784.3mm), and weighs 104.7 lbs. (47.5kg). It runs on AC 120 - 240V 50/60Hz with a max power consumption of 1,500W. Ideal for lighting designers and event organizers looking for a high - performance, versatile lighting solution.
